• Precision ground soft jaws

Precision ground soft jaws


Specification

General soft jaws for hydraulic chucks and master jaws for chucks   Precision ground soft jaws and master jaws for chucks
  • Nice work efficiency.
  • The most economical and practical quality

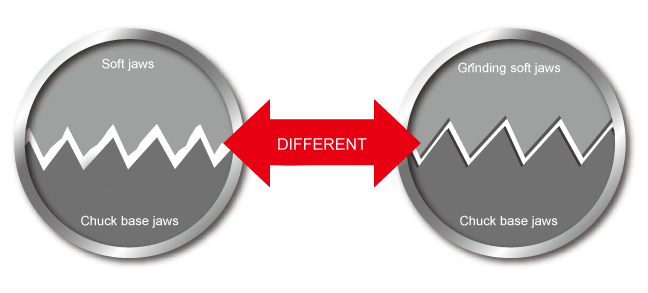

  • Recision grinding soft serrated jaws can be Precisely combined with fine serration of hard chunck jaws,we achieve a considerably improved repeat accuracy.
  • Soft top jaws grinding is more precise and has a more exact fit than the serration of chunk base jaws.That means that the base jaws are subject to less wear and last much longer.
  • Grinding of soft serrations and Fine Processing tongue and groove are all be designed designed, ensures the highest repeat accuracy and an unusually long service life.

Models of precision ground soft jaws

Specification

Mode

H

H

Angle

6” standard

WZ-GS06

36

50

120

6” sharp

WZ-GT06

36

50

90

8” standard

WZ-GS08

38

50

120

8” sharp

WZ-GT08

38

50

90

10”standard

WZ-GS10

42

50

120

10”sharp

WZ-GT10

42

50

90


Note 1: Refer to the detail drawing of 6”, 8” & 10” for the dimensions of precision ground soft jaws products
