standard soft jaws for hydraulic chucks

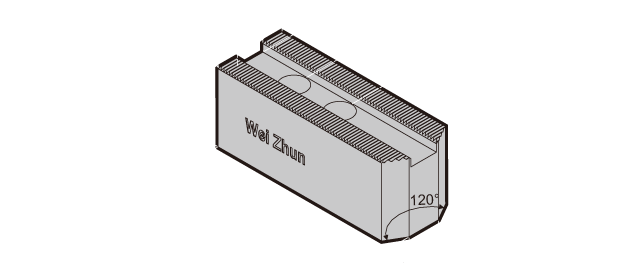

Dimension
Specification
|
Model |
L |
W |
H |
A |
P1 |
P2 |
B |
Tapped hole |
Weight |
|
WZ-S08H38 |
95 |
35 |
38 |
14 |
24 |
25 |
16 |
M12 |
2.5 |
|
WZ-S08H50 |
50 |
3.2 |
|||||||
|
WZ-S08H60 |
60 |
3.8 |
|||||||
|
WZ-S08H70 |
70 |
4.4 |
|||||||
|
WZ-S08H80 |
80 |
5.1 |
|||||||
|
WZ-S08H90 |
90 |
5.8 |
|||||||
|
WZ-S08H100 |
100 |
6.4 |
|||||||
|
WZ-S08H120 |
120 |
7.6 |
|||||||
|
WZ-S08H140 |
140 |
8.8 |
|||||||
|
WZ-S08H160 |
160 |
10.1 |
|||||||
|
WZ-S08H180 |
180 |
11.4 |
|||||||
|
WZ-S08H200 |
200 |
12.6 |
Note 1: 120˚, 90˚and 60˚ standard soft jaws for hydraulic chucks are available.
Note 2: Please write your order in the following way: e.g. 8”120˚ * H38→WZ-S08H38-120* number of sets you want
