standard soft jaws for hydraulic chucks

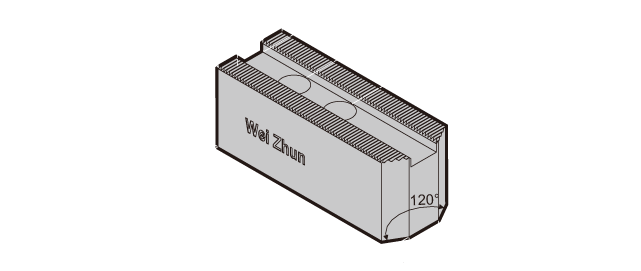

Dimension
Material: medium carbon steel S50C
Unit: mm
|
Model |
L |
W |
H |
A |
P1 |
P2 |
B |
Tapped hole |
Weight |
|
WZ-S10H42 |
110 |
40 |
42 |
16 |
30 |
30 |
18 |
M12 |
3.7 |
|
WZ-S10H50 |
50 |
4.2 |
|||||||
|
WZ-S10H60 |
60 |
5.3 |
|||||||
|
WZ-S10H70 |
70 |
6.1 |
|||||||
|
WZ-S10H80 |
80 |
7.1 |
|||||||
|
WZ-S10H90 |
90 |
8 |
|||||||
|
WZ-S10H100 |
100 |
8.8 |
|||||||
|
WZ-S10H120 |
120 |
10.5 |
|||||||
|
WZ-S10H140 |
140 |
12.2 |
|||||||
|
WZ-S10H160 |
160 |
14.0 |
|||||||
|
WZ-S10H180 |
180 |
15.8 |
|||||||
|
WZ-S10H200 |
200 |
17.5 |
Note 1: 120˚, 90˚and 60˚ standard soft jaws for hydraulic chucks are available.
Note 2: Please write your order in the following way: e.g. 10”120˚ * H42→WZ-S10H42-120* number of sets you want
