Grip Center Clamp Series_2"

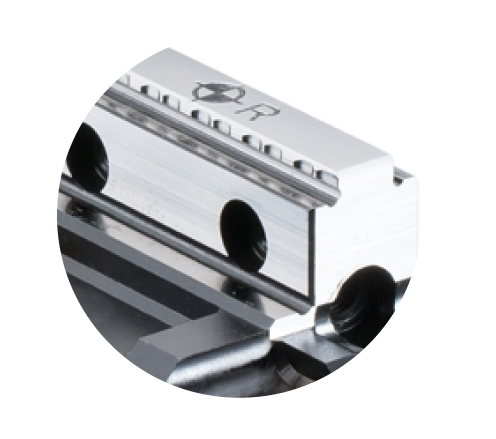

S型鉗口 (S-Type Jaws)
Suitable for pre-stamping indentations
Low clamping force, reduces material deformation
Low wear on clamping devices, long service life
Small tightening tools, ergonomic design
Material: Steel HRC50

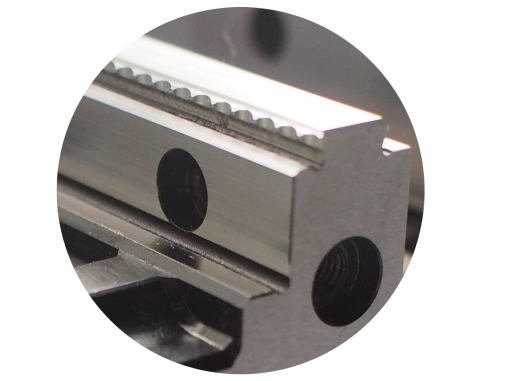

A型鉗口 (A-Type Jaws)
Suitable for light-cutting machining
Saves material, shortens production time
Improves dimensional stability
Material: Steel HRC50
Suitable for pre-stamping indentations
Low clamping force, reduces material deformation
Low wear on clamping devices, long service life
Small tightening tools, ergonomic design
Material: Steel HRC50
A型鉗口 (A-Type Jaws)
Suitable for light-cutting machining
Saves material, shortens production time
Improves dimensional stability
Material: Steel HRC50
Model :
WEV-2AS090
Type A Workpiece Pre-stamping for Aluminum.
Type S Workpiece Pre-stamping for Steel.
尺 寸 圖
| Clamping Range | Clamping Force | Torque Vise Assembly | Set/Kg | |||||||
| Technical Data | A | B | C | L | E | F | ||||
| 2" Self-Centering Vise | WEV-2AS090 | 77 | 46 | 67 | 110 | 0-50 | 43-90 | 13kN/60Nm | Max.70Nm | 2.5 |
| 2" Large Self-Centering Vise | WEV-2AL200 | 77 | 46 | 67 | 220 | 0-150 | 43-200 | 13kN/60Nm | Max.71Nm | 4.1 |
