Grip Center Clamp Series-5"
Model :
WEV-5CS200

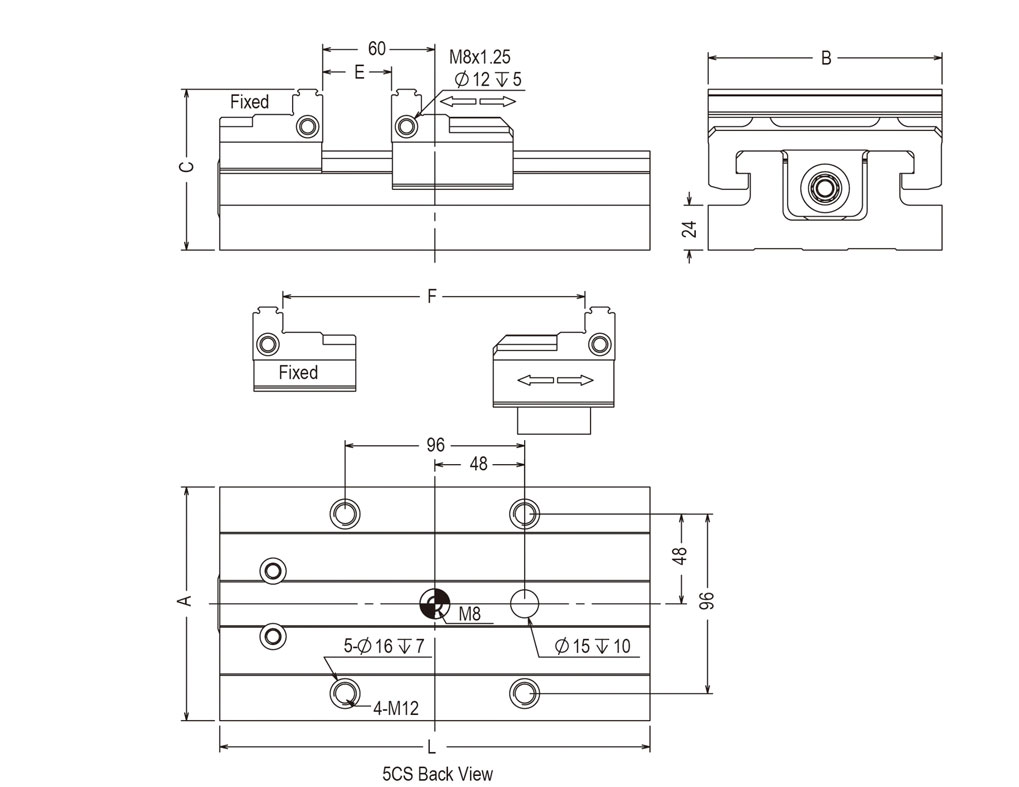

尺 寸 圖
| Clamping Range | Clamping Force | Torque Vise Assembly | Set/Kg | |||||||
| Technical Data | A | B | C | L | E | F | ||||
| 5" Grip Vise | WEV-5CS200 | 125 | 125 | 86 | 230 | 0-115 | 90-200 | 15.6kN/85Nm | Max.100Nm | 10.6 |
